Export Nodes Wizard

Analyzes the nodes of a polyline layer and exports them as a point feature class.

Inputs:

• A polyline feature layer
• Types of nodes to be exported

Outputs:

• New point feature class
  • Contains points representing the specified node types

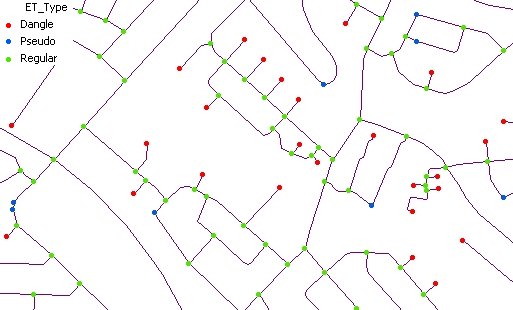

    • Regular nodes - node where more than two polylines intersect
    • Pseudo nodes - occur where a single line connects with itself  or where only two polylines intersect
    • Dangling nodes - unconnected nodes of a dangling polylines
  • Several fields are added to the point attribute table  :
    • [ET_Type] - thetype of node.
    • [PL_FID1], [PL_FID2] ...[PL_FIDn] carrying the  IDs of the polylines that intersect in the node
