Polyline Global Snap

Running programmatically

Snaps the features of a polyline layer to another layer (Point, Multipoint, Polyline or Polygon)

Inputs

A polyline layer to be snapped
A snap layer - point, polyline or polygon
Snap tolerance
Snap options1 (Snap What)
Snap options2 (Snap To What)
Snap to reference Z values (only if the input and output are Z enabled)

Outputs

A polyline layer - the polylines from the source layer will be moved to snap to the features of the Snap Layer (if within the snap tolerance)

Options:

Snap Options 1 (Snap What) - this options lets the user set which elements of the source polylines to be used for snapping
- Nodes: Only nodes (end points) of the polylines will be snapped
- Vertices: All the vertices of the source polylines will be used.
- Insert Vertices: This option will get the vertices from the features of the snap layer and will insert new vertices into the source polylines. The new vertices together with the original ones will be used for snapping. This option is slower than the other ones, but gives the best snapping results especially if the polylines to be snapped have much less vertices than the ones from the Snap layer.
Snap Options 2 (Snap To What)
- Vertices: The polylines will be snapped to the nearest vertex of the nearest feature from the Snap layer
- Nearest edge: The polylines will be snapped to the nearest point of the nearest feature from the Snap layer
- Vertices and Edges: If there is a vertex closer than the snap tolerance to the polylines (their elements defined in Options 1) to be snapped, the polyline will snap to it, otherwise it will snap to the nearest edge.
Snap to Z

Notes:

The snap distance should be in the units of the input dataset.
The Source and the Snap datasets can have different spatial references as long as they have the same Geographic Coordinate systems.

Example: Red - Source Polyline; Black - Snap Polyline; Green - Snapped Polyline

Before Snap

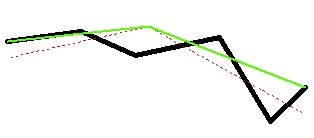

After Snap - Option1: Nodes, Option2: Vertices

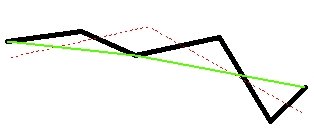

After Snap - Option1: Vertices, Option2: Vertices

After Snap - Option1: Insert Vertices, Option2: Vertices and Edges

Running Programmatically

(Go to TOP)

Parameters

Expression	Explanation
Function Name	SnapPolylines
<input dataset>	A String representing the input layer. Must be of Polyline type.
<Reference Dataset>	A String representing the layer to be used to snap to.
<output dataset>	A String - the full name of the output layer.
<Snap Tolerance>	A Double representing the Snap Tolerance (in the units of the spatial reference of the input dataset or the Reference Dataset is KeepSourceSref = FALSE).
<Snap What>	Required. A String indicating what parts of the input polygons will be snapped. Possible values: Node - only the nodes of the source polylines will be snapped. Vertex - the vertices of the source polylines will be snapped. InsertVertex - the vertices from the features of the Reference Dataset will be inserted (if closer to the input dataaset) as new vertices into the source polylines. The new vertices together with the original ones will be used for snapping. This option is slower than the other ones, but gives the best snapping results especially if the polygons to be snapped have much less vertices than the ones from the Reference Dataset.
<Snap To What>	Required. A String indicating to what parts of the reference geometries the input polygons will try to snap. Possible values: Vertex - the input polylines will be snapped only to the vertices of the geometries from the reference dataset. All - the input polylines will be snapped to the vertices or nearest edge of the geometries from the reference dataset.
{Snap To Z}	Optional. A Boolean indicating whether the input geometries will snap the the Z values of the geometries from the Reference Dataset. Only if both dataset have Z values.
{KeepSourceSref}	Optional. A Boolean indicating whether the output to have the spatial reference of the input layer. If False or 0, the spatial reference of the reference layer will be used.

Running the function

ETGWPath used in the table below is the full path to ETGWRun.exe (E.G. "C:\Program Files\ETSpatial Techniques\ETGeo Wizards\ETGWRun.exe")

Language	Syntax
Python	subprocess.call([ETGWPath, "SnapPolylines", "input dataset", "Reference Dataset", "output dataset", "Snap Tolerance", "Snap What", "Snap To What", "Snap To Z", "KeepSourceSref"])
.NET using ETGWRun.exe	StartInfo.FileName = ETGWPath StartInfo.Arguments = "SnapPolylines" "input dataset" "Reference Dataset" "output dataset" "Snap Tolerance" "Snap What" "Snap To What" "Snap To Z" "KeepSourceSref"
.NET using ETGWOutX.dll	SnapPolylines(input dataset, Reference Dataset, output dataset, Snap Tolerance, Snap What, Snap To What, Snap To Z,KeepSourceSref)
ArcPy	arcpy.SnapPolylines(input dataset, Reference Dataset, "output dataset" , "Snap Tolerance", "Snap What", "Snap To What", "Snap To Z", "KeepSourceSref")

Notes:

<> - required parameter
{} - optional parameter
See examples for Python , .NET or ArcPy
The argument separator for StartInfo.Arguments is space. If a string might contain a space, you need to double quote it.
