Square Grids In Polygons

Generates square grids located in the polygons of the input polygon dataset. The cell size for each polygon can be the same or different - based on the values in a numeric field of the input polygon feature class. The user can specify the rotation angle for the resulting square grids.

Inputs:

A polygon feature class
The cell size of the grid for each polygon can be input in one of the following ways
- A numeric field which values will define the cell size for the grid for each polygon.
- A constant number that defines the cell size (the same for all polygons)
Rotation angle
- Constant for all polygons - (in degrees starting from North clockwise)
- From field - different rotation angle for each field (in degrees starting from North clockwise)
- Along the longest axis of each polygon
- Along the longest side of each polygon
Squares completely inside the polygons
- if TRUE - no square will intersect the polygon boundary.
- If FALSE - the centers of the squares will be inside the polygons, but the squares might intersect the polygon boundary

Outputs:

New Polygon feature class.
The following fields are added to the attribute table of the resulting feature class.
- [ET_ID] - the ID of the original polygon

Illustration:

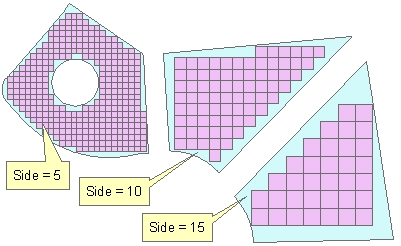

Cell size = 10, Rotational angle = "Along the longest side", Completely inside = TRUE

Square Grids In Polygons

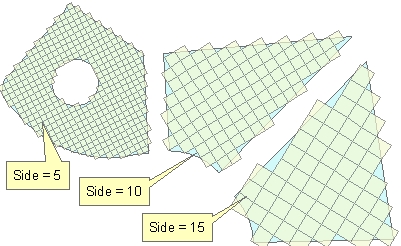

Original polygons labeled with the values in field to be used as a source for the Cell Size. Rotational angle = "Along the longest Axis", Completely inside = FALSE

Square Grids In Polygons

Original polygons labeled with the values in field to be used as a source for the Cell Size. Rotational angle = 0, Completely inside = TRUE

Square Grids In Polygons

Running Programmatically

(Go to TOP)

Parameters

Expression	Explanation
Function Name	SquareGridsInPolygons
<input dataset>	A String representing the input layer. Must be of Polygon type.
<output dataset>	A String - the full name of the output layer.
{Size}	A Double representing grid cell size
{Size Field}	A String representing the name of a field in the in the attribute table of the input dataset. The field has the values for the cell size of the grid polygons to be created.
<Angle From>	Required. A String -This parameter defines what will be the source rotation of the grids: "Constant" - user defined value for all grids. "FromField" - different for each grid based on a value in the attribute table. "LongestAxis" - the grids will be oriented along the longest axis of each polygon. "LongestSide" - the grids will be oriented along the longest side of each polygon.
{Angle}	A Double representing the rotation angle of the grids
{Angle Field}	A String representing the name of a field in the in the attribute table of the input dataset field name. The field has the values for the angle of the grids to be created.
{Inside Only}	A Boolean indicating whether all cells to be only inside the polygons.

Running the function

ETGWPath used in the table below is the full path to ETGWRun.exe (E.G. "C:\Program Files\ETSpatial Techniques\ETGeo Wizards\ETGWRun.exe")

Language	Syntax
Python	subprocess.call( [ETGWPath, "SquareGridsInPolygons", "input dataset", "output dataset", "Size", "", "Angle From", "Angle", "", "Inside Only"])
.NET using ETGWRun.exe	StartInfo.FileName = ETGWPath StartInfo.Arguments = "SquareGridsInPolygons" "input dataset" "output dataset" "Size" "" "Angle From" "Angle" "" "Inside Only"
.NET using ETGWOutX.dll	SquareGridsInPolygons(input dataset, output dataset, Size, "", Angle From, Angle, "", Inside Only)
ArcPy	arcpy.SquareGridsInPolygons(input dataset, output dataset , "Size", "", "Angle From", "Angle", "", "Inside Only")

Notes:

<> - required parameter
{} - optional parameter
See examples for Python , .NET or ArcPy
The argument separator for StartInfo.Arguments is space. If a string might contain a space, you need to double quote it.
