uniformPointsInPolygons

Uniform Points In Polygons

Generates uniform (regularly spaced) points located in the polygons of the input polygon dataset. The number of points per polygon can be constant or different for each polygon - based on the values in a numeric field of the input polygon feature class. The distance between the points is interpolated for each polygon. The user can specify the rotation angle for the resulting point grid.

Inputs:

A polygon feature class
The number of points per polygon can be input in one of the following ways
- A numeric field which values will be used to get the number of points to be generated per polygon.
- A constant number
Optional: Minimum Distance from boundary - no point will be generated that is closer than this tolerance to the boundary of the polygon.
Rotation angle
- Constant for all polygons - (in degrees starting from East anti-clockwise)
- From field - different rotation angle for each field (in degrees starting from East anti-clockwise)
- Along the longest axis of each polygon
- Along the longest side of each polygon

Outputs:

New Point feature class.
The following fields are added to the attribute table of the resulting feature class.
- [ET_ID] - the ID of the original polygon
- [ET_X] - the X coordinate of the point
- [ET_Y] - the Y coordinate of the point
- [ET_Dist] - the distance between the generated points (constant for the points in each polygon)

Illustration:

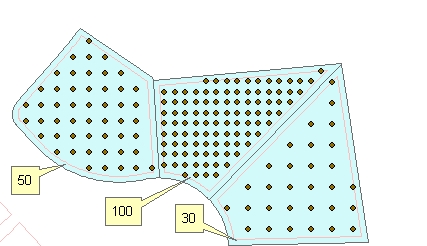

Original polygons labeled with the values in field to be used as a source for getting the number of points to be generated and the resulting points.Rotational angle = 0, Minimum distance to boundary = 5

Uniform Points In Polygons

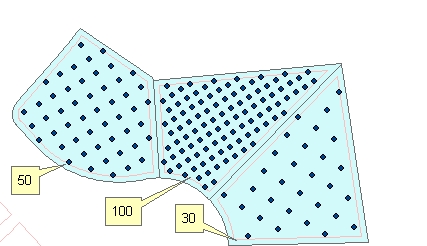

Original polygons labeled with the values in field to be used as a source for getting the number of points to be generated and the resulting points.
Rotational angle = "Along the longest Axis", Minimum distance to boundary = 5

Uniform Points In Polygons

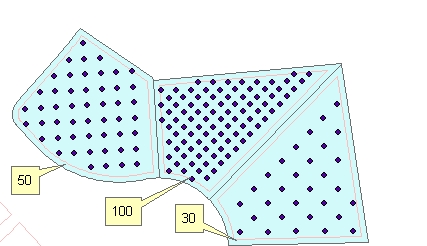

Original polygons labeled with the values in field to be used as a source for getting the number of points to be generated and the resulting points. Rotational angle = "Along the longest side", Minimum distance to boundary = 5

Uniform Points In Polygons

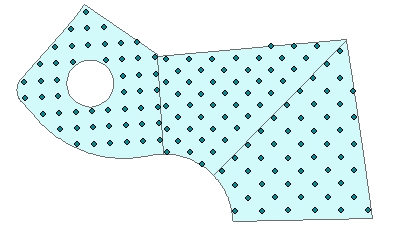

50 points per polygon. Rotational angle = "Along the longest side", Minimum distance to boundary = 0

Uniform Points In Polygons

Running Programmatically

(Go to TOP)

Parameters

Expression	Explanation
Function Name	UniformPointsInPolygons
<input dataset>	A String representing the input layer. Must be of Polygon type.
<output dataset>	A String - the full name of the output layer.
<Angle From>	Required. A String -This parameter defines what will be the source rotation of the grids: "Constant" - user defined value for all grids. "FromField" - different for each grid based on a value in the attribute table. "LongestAxis" - the grids will be oriented along the longest axis of each polygon. "LongestSide" - the grids will be oriented along the longest side of each polygon.
{Number Points}	An Integer representing the number of points per polygon to be created.
{Number Points Field}	A String representing the name of a field in the in the attribute table of the input dataset. The field has the values for the number points per polygon to be created.
{Angle}	A Double representing the rotation angle of the grids
{Angle Field}	A String representing the name of a field in the in the attribute table of the input dataset field name. The field has the values for the angle of the grids to be created.
{Distance to Boundary}	A Double representing the minimum distance to the polygon boundary

Running the function

ETGWPath used in the table below is the full path to ETGWRun.exe (E.G. "C:\Program Files\ETSpatial Techniques\ETGeo Wizards\ETGWRun.exe")

Language	Syntax
Python	subprocess.call( [ETGWPath, "UniformPointsInPolygons", "input dataset", "output dataset", "Angle From", "Number Points", "Number Points Field", "Angle", "","Distance to Boundary"])
.NET using ETGWRun.exe	StartInfo.FileName = ETGWPath StartInfo.Arguments = "UniformPointsInPolygons" "input dataset" "output dataset" "Angle From" "Number Points" "Number Points Field" "Angle" "" "Distance to Boundary"
.NET using ETGWOutX.dll	UniformPointsInPolygons(input dataset, output dataset, Angle From, Number Points, Number Points Field, Angle, "", Distance to Boundary)
ArcPy	arcpy.UniformPointsInPolygons(input dataset, output dataset , "Angle From", "Number Points", "Number Points Field", "Angle", "", "Distance to Boundary")

Notes:

<> - required parameter
{} - optional parameter
See examples for Python , .NET or ArcPy
The argument separator for StartInfo.Arguments is space. If a string might contain a space, you need to double quote it.
