ETG_RasterToPolygons

Raster To Polygons

Converts an Integer raster to a polygon feature layer.

The attribute table of the output layer has a field ET_RValue. For each polygon is recorded the corresponding raster value.
The cells with NoData values will not be converted to polygons.

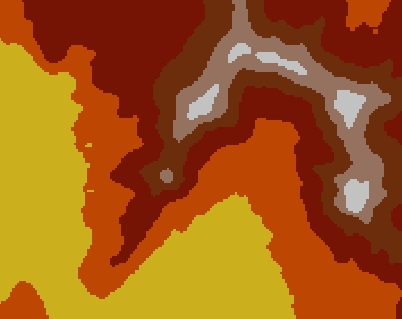

Input Integer Raster.

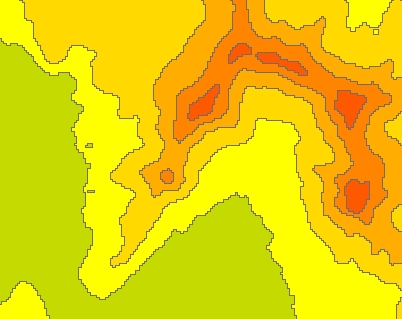

Output Polygons.

The input format accepted are file based rasters - ERDAS IMAGINE or Tagged Image File Format (TIFF).
The Python ToolBox for ArcGIS Desktop and ArcGIS Pro accepts also FileGDB Raster and ESRI GRID inputs.

Parameters

Expression	Explanation
Function Name	RasterToPolygons
<input raster>	A String representing the input Integer raster dataset.
<OutputLayer>	A String - the full name of the output feature layer

ETSPath used in the table below is the full path to ETSRun.exe (E.G. "C:\Program Files\ETSpatial Techniques\ETSurface\ETSRun.exe")

UnitsDegrees

Language	Syntax
Python	subprocess.call([ETSPath, "RasterToPolygons", "input raster", "OutputLayer"])
.NET using ETSRun.exe	StartInfo.FileName = ETSPath StartInfo.Arguments = "RasterToPolygons" "input raster" "OutputLayer"
.NET using ETSOutX.dll	RasterToPolygons(input raster, OutputLayer)
ArcPy	arcpy.RasterToPolygons("input raster", "OutputLayer")

Notes:

<> - required parameter
{} - optional parameter
See examples for Python , .NET or ArcPy
The argument separator for StartInfo.Arguments is space. If a string might contain a space, you need to double quote it.
