Property settings for each layer can be adjusted
in the Property Windows (TOC Context Menu ==>
Properties). Depending on the layer type, there are different Property
Windows. When the layer is a surface, the Profile Properties Window is
displayed. For layers - see Layer Properties.
Profile Properties - apply
settings for a Surface layer

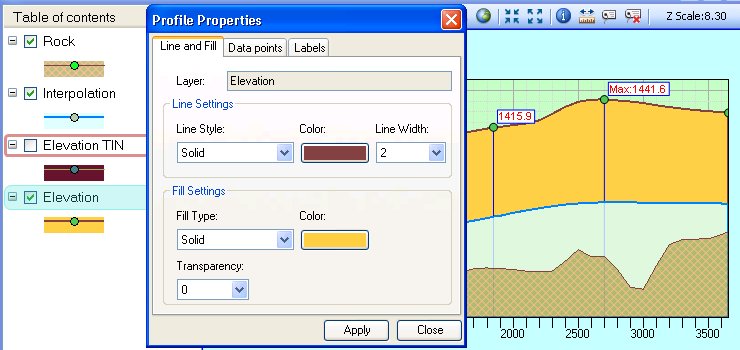

Line and Fill tab - allows for changes in the line style, color
and width and the fill type, color(s), style and transparency.

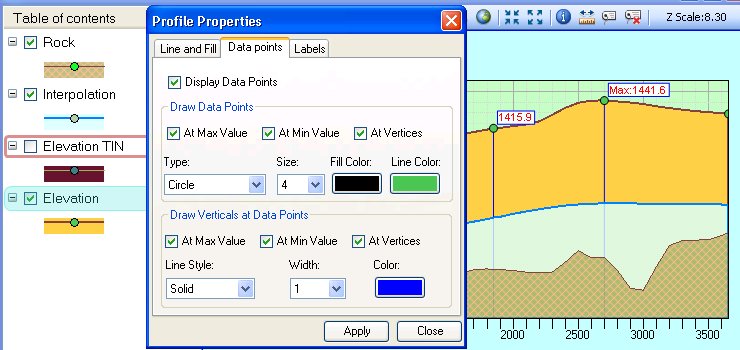

Data points tab
Display Data Points - when not
checked, no Data Points are displayed including Verticals and
Labels. When checked the options below are used for the
Data Points display. This option can also be changed for a
layer by right clicking on the Layer name in the TOC and
checking "Show Data Points".
Draw Data Points - the user
can specify which significant data points will be drawn
automatically on the profile and change their symbol, size
and colors.
Draw Verticals at Data Points -
the user can specify at which significant data points a vertical
lines will be drawn automatically on the profile and change
their line style, width and color.

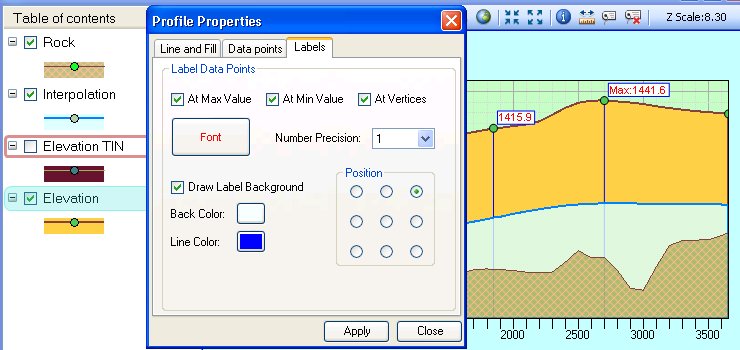

Labels tab
Label Data Points
- the user can specify which significant data points will be
labelled on the profile, change the font,
style, precision and position of the Labels.
