TIN Visibility Analysis

Calculates the visibility from a set of observer points to the features of the target dataset on a reference TIN. If the target dataset is of polyline or polygon type, the visibility to the vertices of the geometries is calculated. The result will be a point dataset (vertices of the targets). For each point the number of observers that can see the point are recorded in the attribute table.

Inputs:

Input Observers Point feature dataset.
Input Targets feature dataset (point, polyline or polygon).
Reference TIN dataset.
Output point dataset.
A String - the field name of the input observers attribute table indicating offset from the terrain (optional).
A String - the field name of the input targets attribute table indicating offset from the terrain (optional).
Options ( see Line of Sight discussion) (optional).
- Apply Earth curvature correction.
- Apply air refraction corrections.
- Apply radio wave corrections.

Outputs:

New Point feature dataset.

Notes:

The following new field will be added to the output polygon feature dataset.
- ET_Visible - the number of observers that can see the point.
All attributes of the original features are preserved.

Example:

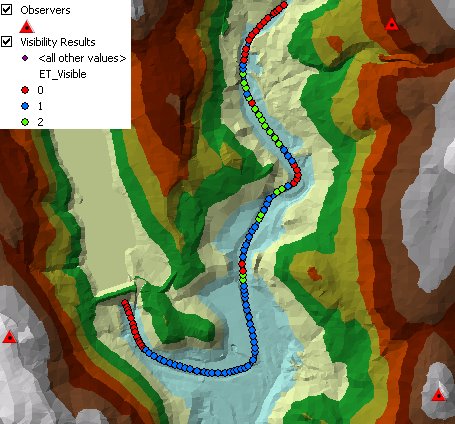

Output - TIN visibility:

Running Programmatically

(Go to TOP)

Parameters

Expression	Explanation
Function Name	TinVisibility
<observers dataset dataset>	A String representing the input observers point feature dataset.
<targets dataset>	A String representing the input targets feature dataset.
<reference tin>	A String - the full name of the reference TIN dataset.
<output dataset>	A String - the full name of the output dataset.
{observer offset field}	A String representing the name of the field which values will be used as offset of the observers above the surface.
{target offset field}	A String representing the name of the field which values will be used as offset of the targets above the surface.
{use earth curvature}	A Boolean indicating if Earth Curvature correction will be applied (default is False).
{refraction correction}	A Double representing the air refraction coefficient - Default value = 0.13.
{radio waves correction}	A Double representing the radio waves correction coefficient - Default value = 1.333333

Running the function

ETGWPath used in the table below is the full path to ETGWRun.exe (E.G. "C:\Program Files\ETSpatial Techniques\ETSurface\ETSRun.exe")

Language	Syntax
Python	subprocess.call([ETSPath, "TinVisibility", "observers dataset", "targets dataset", "reference tin", "output dataset", "observer offset field", "target offset field", "use earth curvature", "refraction correction", "radio waves correction"])
.NET using ETSRun.exe	StartInfo.FileName = ETSPath StartInfo.Arguments = "TinVisibility" "observers dataset" "targets dataset" "reference tin" "output dataset" "observer offset field" "target offset field" "use earth curvature" "refraction correction" "radio waves correction"
.NET using ETSOutX.dll	TinVisibility(observers dataset, targets dataset, reference tin, output dataset, observer offset field, target offset field, use earth curvature, refraction correction, radio waves correction)
ArcPy	arcpy.TinVisibility("observers dataset", "targets dataset", "reference tin", "output dataset", "observer offset field", "target offset field", "use earth curvature", "refraction correction", "radio waves correction")

Notes:

<> - required parameter
{} - optional parameter
See examples for Python , .NET or ArcPy
The argument separator for StartInfo.Arguments is space. If a string might contain a space, you need to double quote it.
